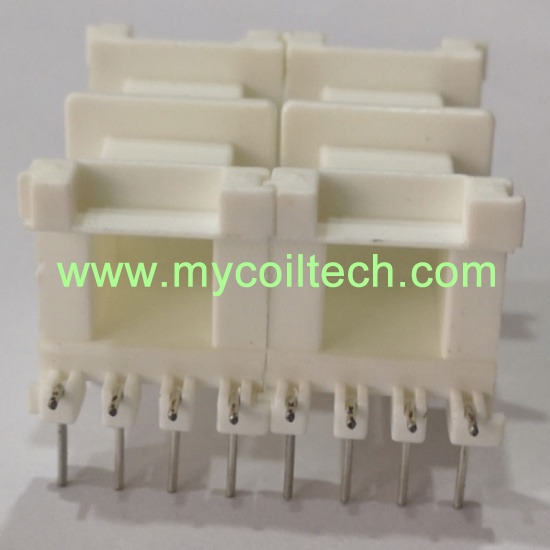

UI30 PBT material transformer, low frequency transformer bobbin UI30 two slots. Bobbin size=42.5mmX41.0mmX20.1mm, parallel distance=35.0, pin pitch1=5.0mm. We accept make new bobbin tooling to meet special size request, samples can be sent for testing.
brand:
MCTitem no.:
MCT-UI3001-1shipping port:
ShanghaiHot selling UI30/10.5 transformer bobbin, 4+4 pins UI30 double slots coil former, we manufacture final low frequency transformer.
Product Specification
For more information, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
SMD Transformer Bobbin UI9.8 with 8Pin
8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0 Size=32.1mmX9.8mmX4.45mm
UI16 Transformer Bobbin Phenolic Material With 2 Pins
2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Height=5.3mm Diameter=16mm
SMD Transformer Bobbin UI9.8 with 8Pin
8 Pins Bobbin, Phenolic Material Bobbin,UL REC:94V-0 Size=32.1mmX9.8mmX4.45mm
UI30 Low Frequency Transformer 4+4Pin Bobbin
UI30 4+4 pin bobbin for transformer, A3X2G5 material coil former two slots, Bobbin size=42.5mmX41.0mmX20.1mm, parallel distance=35.0, pin pitch1=5.0mm. We accept make new bobbin tooling to meet special size request, samples can be sent for testing.
ET20 Common Mode Inductor Base
Filter inductor ET20 horizontal base, common mode choke 2+2 pins base factory. Pin pitch=10.0mm, parallel distance=13.0mm. Manufacture final ET20 inductor, welcome customized coils and transformers.
EPC17 SMD Horizontal Transformer Bobbin
Horizontal SMD EPC17 coil former, 4+5 pins EPC17 single slot transformer, pin pitch1=5.0mm,pin pitch2=3.5mm, Parallel Distance=15.0mm. Bobbin Size=18.5mmX17.3mmX9.5mm, phenolic material EPC17 transformer bobbin.
SMD EFD30 Horizontal Transformer with Eight Slots Bobbin
EFD30 power transformer bobbin. 3+8 pin horizontal EFD30 transformer bobbin. Parallel Distance=34.1mm. Bobbin Size=40.5mmX30mmX12mm. We manufacture high frequency EFD30 transformer for customer.
4+4Pin EE10 Horizontal Transformer Bobbin
4+4 Pins Horizontal Bobbin, Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10.5mm Size=12.5mmX10.4mmX10.5mm
ET12 Line Filter Common Mode Choke Inductor For Signal And Noise Suppression
ET12 high current common mode chokes has moderate size and large inductance. Easy to make,low cost and high reliability. Excellent attenuation characteristics in low frequency.
High Voltage Transformer EFD20 4+4 Pin Frame
EFD20 ferrite core bobbin for LED transformer. Double grooves EFD20 horizontal bobbin 4+4 pin. Row distance=17.5mm. Pin pitch=5.0mm. Bobbin Size=20.0mmX20.0mmX10.3mm. EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EE30 High Frequency Transformer Bobbin Clip
EE30 transformer iron clips, SUS-301 material transformer clamps. Clip size=34.5mmX8.1mmX5.5mm. We produce various clips for bobbins, supply matched ferrite cores. EF20 electronic transformers mainly used in computers, lighting, UPS, and other electronic equipments.
EPC13 Power Transformer Bobbin Case
Case for multi section EPC13 coil former, maufacture final transformer for customer, sample can be sent for testing. We accept 3D print soft tooling.
