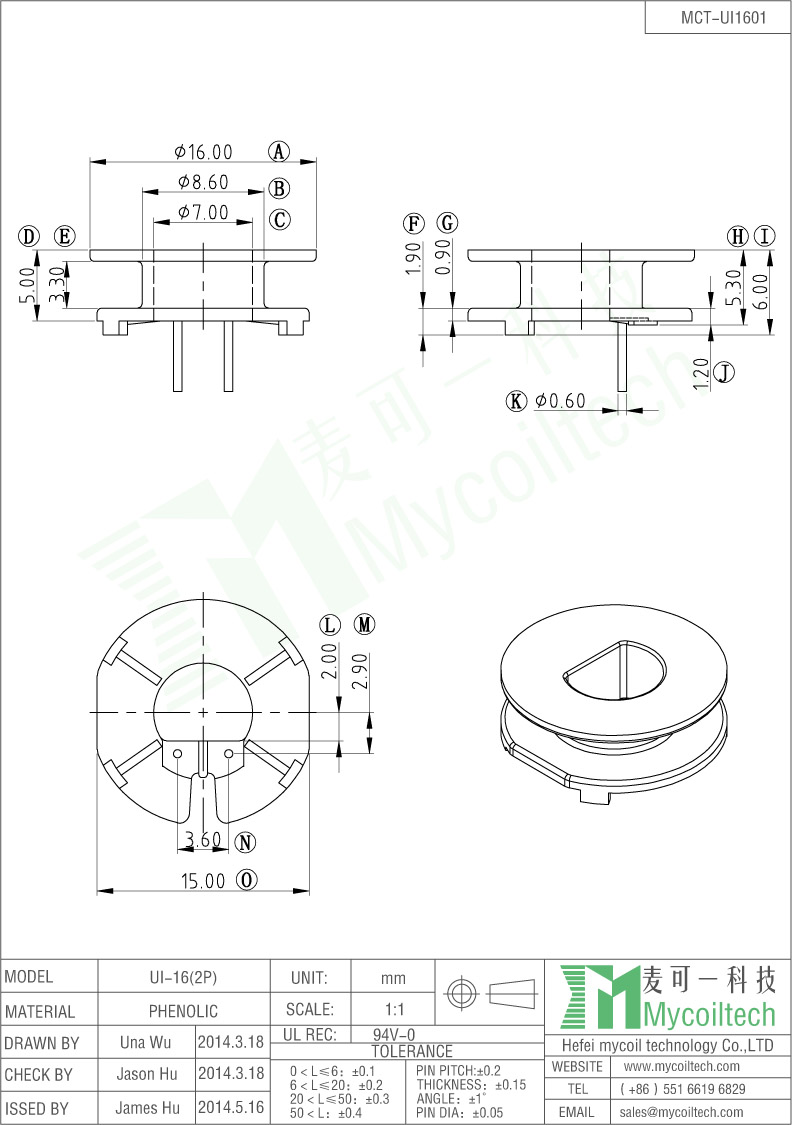

2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Pin Pitch=3.6mm
Height=5.3mm Diameter=16mm
brand:
MCTitem no.:
MCT-UI1601(2P)shipping port:
ShangHaiUI16 transformer bobbin dip bobbin phenolic material black color 2 pins for pcb mounting transformers custom made is available.
Quick Details
Place of Origin:Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material:Phenolic |
Part Number: MCT-UI1601(2P) |
|
Brand Name: MCT |
|
Color: black |
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: UI16 Horizontal Transformer Bobbin Phenolic Material With 2 Pins.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
