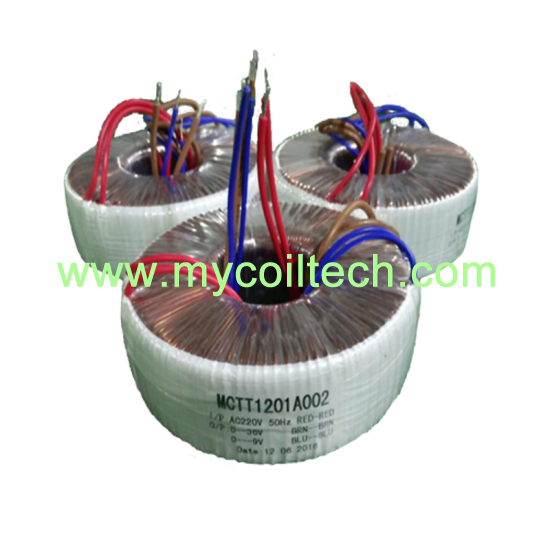

Toroidal transformers belongs electronic transformers,mainly for household appliances,electronic devices,main purpose is serve as power transformers,isolation transformers.
brand:
MCTitem no.:
Toroidal Transformer Power in 30 VA to 2000 VAshipping port:
ShanghaiHefei Mycoil Technology Co.,LTD produce and design varies types toroidal transformers, such as toroidal transformer for solar power(MCT designs it with high efficiency and low noise), toroidal transformers for industrial control(MCT designs it with high efficiency >95%, high reliability), toroidal transformer for computers(MCT designs it with light weight, low profile and high reliability), toroidal transformer for lighting(MCT designs it with low temperature rise, high efficiency, high reliability), other toroidal transformers. Our toroidal transformer has many applications, such as audio equipment, medical equipment, computers, telecommunications, new energy, electronic devices.
The MCTT series power toroidal transformers offer power ranges from 30 VA to 2000 VA inclusive. These standard transformer products share common lead lengths, colors, mounting configurations and more, The STP series are designed to comply with international safety standards.
Quick Details
|
Part No: Toroidal Transformer Power in 30 VA to 2000 VA |
|
Brand name: MCT |
|
Dual Primaries - 2 x 115 V - 50/400 Hz |
|
Custom made: Available |
|
Power - 100 VA to 2000 VA |
|
Logo: Can be customized |
|
Connections: 12.0” color-coded stranded leads |
|
Packing: Carton,can custom |
|
Insulation System - Class B, 130º C |
|
OEM: Available |
|
Certification: ISO9001,ROHS,CE |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: Toroidal Transformer Power In the Round 30 VA to 2000 VA
Product Benefits: Minimal core losses, Low profile, Power/mass efficient, Reduced EMI, Low dB, ROHS compliant.
Applications: Switching power supplies, chargers, audio equipment, medical equipment, solar inverter, electronic devices, SMPS
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product General Specifications
Dual Secondaries - Standard outputs 2 x 115V with multiple output
Supplied with mounting hardware set; screw, nut, top plate and 2 rubber pads.
Component certifications for North American and IEC/EN standards available on request.
Electrical data table
Part Number
Power Range
Dimensions2
Inches (mm)
Weight
Recommended Fastener Size
VA
A
B
lbs (kg)
MCTT050XAXXX
50
3.5 (88)
1.5 (38)
1.86 (0.84)
#8
MCTT100XAXXX
100
4.2 (105)
1.4 (35)
2.86 (1.3)
#8
MCTT150XAXXX
150
4.6 (116)
1.7 (42)
4.40 (2.0)
#10
MCTT200XAXXX
200
4.8 (120)
1.9 (48
5.30 (2.4)
1/4”
MCTT250XAXXX
250
5.0 (127)
2.0 (50)
6.40 (2.9)
1/4”
MCTT300XAXXX
300
5.1 (128)
2.2 (55)
7.0 (3.2)
1/4”
MCTT400XAXXX
400
5.3 (133
2.8 (70)
10.3 (4.7)
5/16”
MCTT500XAXXX
500
5.6 (140)
2.9 (72)
12.1 (5.5)
3/8”
MCTT600XAXXX
600
6.1 (155)
2.9 (72)
14.8 (6.7)
3/8”
MCTT800XAXXX
800
6.7 (170)
2.9 (72)
18.0 (8.2)
3/8”
MCTT103XAXXX
1000
7.1 (180)
3.1 (78)
22.1 (10.0)
3/8”
MCTT123XAXXX
1200
7.8 (198)
3.2 (80
29.5 (13.4)
3/8”
MCTT163XAXXX
1600
8.3 (210)
3.4 (86)
35.3 (16.0)
1/2”
MCTT203XAXXX
2000
9.2 (232)
3.6 (90)
44.1 (20.0)
1/2”

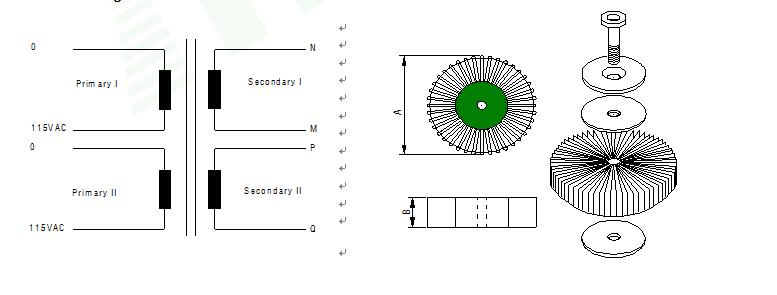

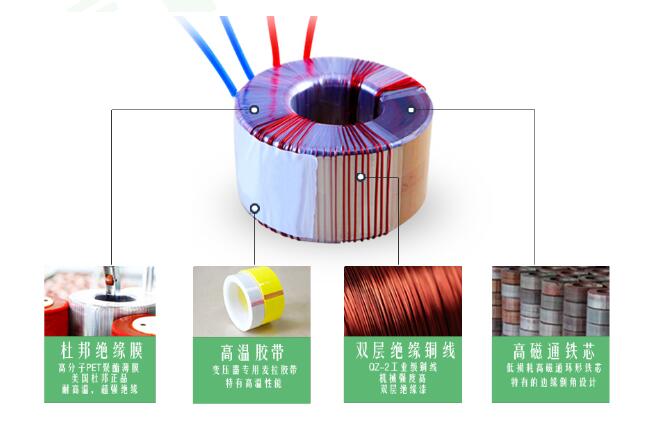

Structure Analysis
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
EP20 LED Drive Transformer Bobbin With Double Slots
EP20 ferrite core bobbin. Two slots 2+2 pins coil former. Phenolic material bobbin. Size=21.5mmX21.0mmX16.9mm. Parallel Distance=12.1mm. We manufacture EP20 electronic transformers, mainly for LCD televisions and monitor, medical equipment, computer devices, UPS, communication equipment, custom design also available.
ET20 Common Mode Inductor Base
Filter inductor ET20 horizontal base, common mode choke 2+2 pins base factory. Pin pitch=10.0mm, parallel distance=13.0mm. Manufacture final ET20 inductor, welcome customized coils and transformers.
SMD EFD20 Bobbin For Switching Power Supply Transformer
5+5 pin EFD20 coil former. Phenolic material transformer bobbin. Horizontal type SMD bobbin. Pin Pitch=3.76mm. Parallel distance=20.3mm. Size=23.5mmX21.5mmX9.6mm. Customized designs are accepted.
ETD54 PCB Circuit Transformer Ferrite Core Bobbin
ETD54 two slots coil former. Horizontal transformer ETD54 bobbin 8+11 pins. Bobbin Size=60.8mmX60.8mmX50.0mm. Pin distance=5.08mm. Parallel Distance=45.72mm. Lead free transformer bobbin. DIP bobbin.
UU9.8 Toroidal Transformer Bobbin, 2+2Pins and Double Slots
2+2 Pins UU9.8 Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=7mm Parallel Distance=8mm Size=12.5mmX10.6mmX12.5mm
EFD15 Horizontal Transformer Bobbin L Pin
SMD power transformer. EFD15 SMD bobbin with through-hole wound components and single section. Pin Pitch=2.5mm. Bobbin Size=17.0mmX15.0mmX7.45mm. Parallel distance=15.0mm. EFD15 transformer bobbin made of PM9630 material.
Encapsulated Common Mode Choke Coils Filter Toroidal Inductors
Encapsulated common mode choke is excellent EMI suppressor. It has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.
Double Slots EE13 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=12.5mm Size=16mmX13mmX10.8mm
EF Vertical Transformer Bobbin With Ferrite Core
5+5 pins vertical bobbin. EF20 transformer manufacturer. Bobbin Size=22.2mmX13.5mmX22.5mm. Pin Pitch=3.8mm. Parallel Distance=9.8mm. DIP transformer bobbin. We can make new tooling to meet customer's design.
PQ32 Flyback Transformer Vertical Bobbin
6+6 pins PQ32/30 coil bobbin, PQ32 high frequency transformer. Bobbin Size=34.5mmX33.0mmX30.7mm. Pin pitch=5.0mm, parallel distance=30.0mm, Phenolic PQ32 bobbin for high frequency transformer, accept custom made and OEM service.
Vertical PQ35 Flyback Transformer Frame
PQ35 ferrite transformer, 6+6 pin vertical PQ35/35 coil former. Bobbin Size=39.3mmX34.9mmX36.6mm. Row distance=35.5mm. Pin pitch=5.0mm. Phenolic PQ35 bobbin for high frequency transformer, used in power supplies, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
RM5 Switching Transformer Clip Without Pin
RM5 ferrite transformer clip, SUS-301 material RM5 bobbin clip without pin. Clip size=9.9mmX2.1mm. We are china bobbin factory, we have various bobbin toolings, we supply matched magnetic cores, RM5 clamp for transformer, mainly used in computers, lighting, UPS, and other electronic equipments.
