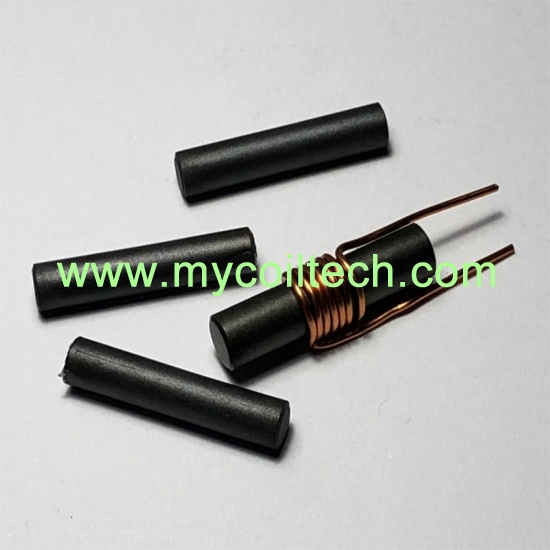

High Frequency Ferrite R4*20 Core for Inductor

Soft Type and ferrite rod bar core. We make final filter power inductor, mainly used in DC-DC converter,choke coils. Tele-Communication. LED lighting and car components's driver. Audio and video antenna filters.

EE42 switching transformer. 6+6 pins horizontal EE42 coil bobbin. Bobbin Size=46.20mmX41.50mmX42.20mm. Parallel distance=37.55mm. Pin pitch1=7.62mm. Pin pitch2=5.08mm. We can make bobbin tooling. Phenolic material EE42 transformer bobbin.

EE25 ferrite core bobbin. Vertical EE25 bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX17.2mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

Vertical PQ26/25 single slot transformer, bobbin size=33.2mmX26.9mmX25.6mm. Parallel distance=26.3mm, pin pitch1=3.8mm, pin pitch2=7.6mm. Phenolic PQ26 bobbin for high frequency transformer, mainly used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.

EF12.6 high frequency coil former. 4+5 pins horizontal EF12.6 single slot bobbin. Row distance=15.3mm. Bobbin Size=19.2mmX13.0mmX7.45mm. Pin pitch=3.5mm, pin pitch2=2.7mm. EF12.6 SMPS transformer widely used for UPS, computers, ultrasonic level sensors, electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.

Switching power PQ32 transformer. Vertical type bobbin 6+6 pins. Bobbin Size=34.0mmX32.0mmX24.8mm. Parallel Distance=30.0mm. Pin pitch=5.08mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range.

EFD15 switching mode power supply transformer has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.2mm Parallel Distance=15.5mm Size=18.3mmX16mmX13.6mm

Horizontal coil bobbin EF25. Double slots coil former. Bobbin Size=25.8mmX25.2mmX19.2mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Transformer bobbin with PA66 material. DIP transformer bobbin.

EP7 ferrite core supplier. Professional bobbin factory, we produce various coil bobbins and special size bobbin to meet customers design requirement. EP7 electronic power transformer mainly used in separator, medical instruments, power source adapter and other equipment.

3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.75mm Parallel Distance=8.6mm Size=16.5mmX16mmX17.1mm

6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=15.6mmX15mmX11.6mm
