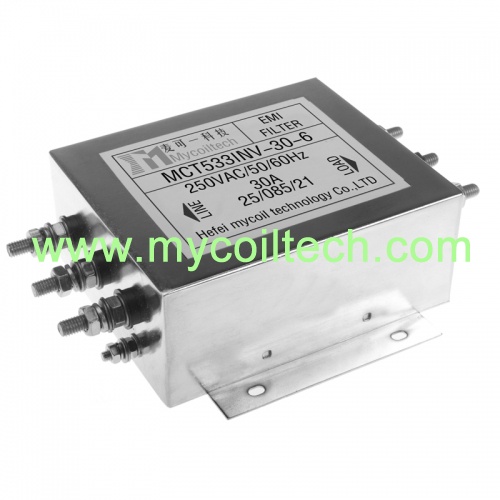

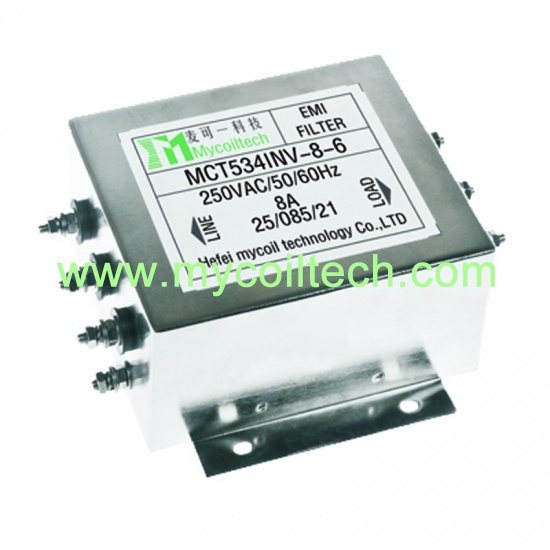

3 phase output EMC/EMI filter, it has excellent interference suppression for Dv/Dt. (1)Test Voltage ( 1min ): Line to Ground: 1450VAC. Line to Line: 2700VAC. (2)Insulation Resistance: Line to Ground: ≥3000Ω. Line to Line: ≥6000Ω. (3)Various connection optional: bolt and busbar terminals.
brand:
MCTitem no.:
Three Phase Three Line Output Filter For Invertershipping port:
ShanghaiHot selling high quality three phase three line output filter, bolt and busbar terminals are optional. Our Factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers. If you are interested in our high current EMI filters, welcome to contact us.
Quick Details
|
Part No: Three Phase Three Line Output Filter For Inverter |
Brand name: MCT |
|
Rated Voltage: 250/440VAC |
Custom made: Available |
|
Rated Current: 5A~1200A |
Logo: Can be customized |
|
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
|
Temperature range : HPF 25/085/21 |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: High Current Three Phase Three Line Output Filter For Inverter
Product features: (1)Over-voltage protection, reduce the electromagnetic interference of inverter. (2)Wide working current range from 5A to 1200A. (3)High quality components ensure the safety and reliability of filters. (4)As output filter for inverter, reduce the loss of inverter and motor choke.
Applications: Output filter for frequency inverter and converter, UPS, SMPS, three-phase motor drives.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
Low Pass Filter Three Phase Three Line Input EMI Filter for Inverter
AC three phase input EMI filter for inverter, with high interference industrial environment. (1)Test Voltage ( 1min ): Line to Ground: 1450VAC. Line to Line: 2700VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.
High Performance Single Phase EMI Filter for Speed Motor Device
Single phase EMI filter for converter, has high performance with differential mode choke. (1)Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.
ET20 Base Vertical High Frequency Bobbin Pin 2+2
DIP inductor vertical base. 2+2 pins ET20 coil bobbin base. Base Size=21.3mmX14.8mmX14.6mm. ET/UT20 phenolic material bobbin base. Pin pitch=10mm. We can make tooling to meet different dimensions. UL REC: 94V-0
EE30 Transformer Bobbin for Electronic Current Power Transformer
EE30 high frequency transformer bobbin. FR530 transformer bobbin. UL REC:94V-0. Bobbin Size=38.6mmX30.2mmX30.2mm.
Common Mode Choke Power Inductor Base
Choke filter toroidal base. PBT material base for toroidal inductor, commom mode choke, filter inductor and other power inductors. We can give you very competitive price for 30mH toroidal common mode power inductors toroidal choke coils with base.
High Voltage Transformer EFD20 4+4 Pin Frame
EFD20 ferrite core bobbin for LED transformer. Double grooves EFD20 horizontal bobbin 4+4 pin. Row distance=17.5mm. Pin pitch=5.0mm. Bobbin Size=20.0mmX20.0mmX10.3mm. EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EE33 EI33 High Voltage Transformer Vertical Bobbin
EI33 transformer core bobbin. 6+6 pin vertical EE33 bobbin. Parallel Distance=22.5mm. Pin pitch=5.0mm. Bobbin size=28.5mmX28.2mmX27.8mm. Ei/EE series ferrite cores widely used in power transformers and high frequency transformers, welcome customized transformer and inductors.
ET28 Common Mode Choke Vertical 2+2 Pin Base
2+2 pin ET28 vertical base. ET28 common mode choke coil. ET28 phenolic material bobbin base. We can make tooling to meet different dimensions. Base Size=29.5mmX20mmX35.5mm. UL REC: 94V-0
EF20 Flyback High Frequency Transformer Bobbin
EF20 horizontal three slots bobbin. Bobbin EF20 pin 4+4. Bobbin Size=20.75mmX20.00mmX17.8mm. Pin pitch=4.0mm. Pin pitch=6.0mm. Parallel Distance=15.0mm. EF20 three slots transformer bobbin. PA66 material transformer bobbin. DIP transformer bobbin.
NC15 Transformer Bobbin Vertical Bobbin With 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=11.6mm Size=15.2mmX13.7mmX16.85mm
RM14 Telecom Transformer Vertical Frame
Power charge transformer bobbin. RM14 6+6 pin vertical coil bobbin.Widely used in communication transformer, high frequency Transformer, main power transformer and SMPS transformer. We have many bobbin toolings, for special size, we can make new tooling to meet requirement.
EE16 Vertical Transformer Bobbin With 6+4 Pins Phenolic Material
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=12mm Size=17.8mmX16.4mmX30.2mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
