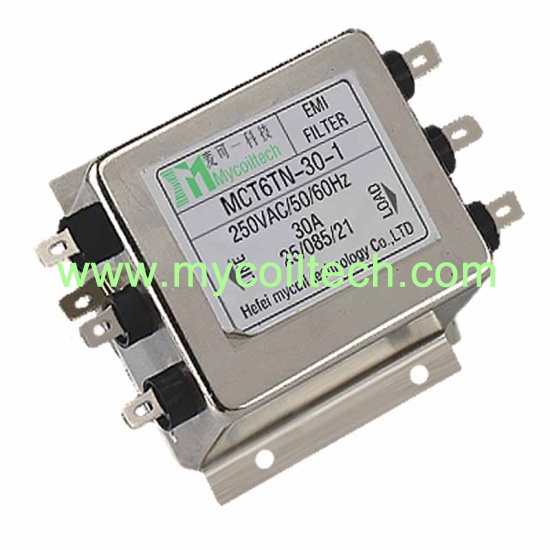

250/440VAC EMI power line three phase filter. High quality components ensure the safety and reliability of filter. Chassis mounting with various connection: fast on/screw/wire terminal. Test voltage(1min): Line to ground:2700VAC. Line to Line:1450VDC. Line to Neutral:1450VDC. Excellent interference suppression performance for CM and DM.
brand:
MCTitem no.:
MCT6TN Three Phase Neutral Line Filtersshipping port:
Shanghai
General purpose three phase four line filters, it has excellent interference suppression performance for CM and DM, rated current from 6A to 10A. We use high quality components to make EMI filters, fast delivery time and good after service, if you have any requests, welcome to contact us.
Quick Details
Part No: MCT6TN Three Phase Neutral Line Filters |
Brand name: MCT |
Rated Voltage: 250/440VAC |
Custom made: Available |
Rated Current: 6A~10A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: 6A-10A Three Phase Four Line Drive EMI Filters
Applications: General purpose four wire filtering. High power office equipment. Electrical equipment. Inverters and converters. Industrial applications. Various noisy applications requiring good filter performance. UPS and SMPS.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
