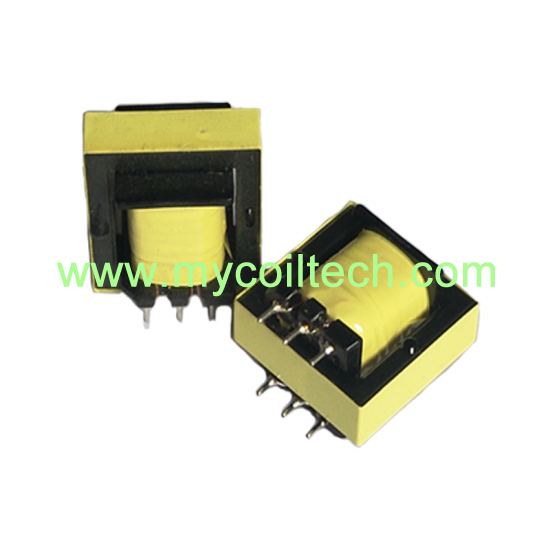

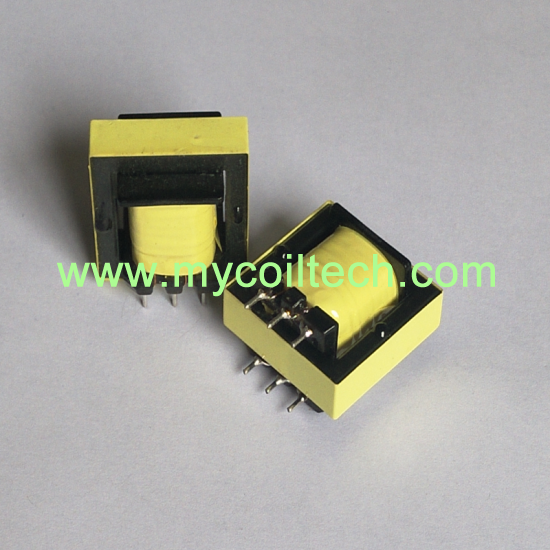

Customized EF25 high frequency flyback transformer mainly for electronic products,digital cameras,switch-mode power supplies,led driver applications,various types are available.
brand:
MCTitem no.:
15~35W EF25 Flyback Transformershipping port:
ShanghaiEF25 high frequency flyback transformer is the basic type of ferrite core, widely used in switching power supply and a variety of electronic circuits. Oscillation is full bridge, half bridge, single-ended, resonant, suitable for a typical transformer structure. EF core increases the cross-sectional area of the core, it can reduce the overall size of the power supply, which will help miniaturization, it also can increase the output power for a variety of switching power supply transformer and coils.
Hefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, choke coils, full range of SMD power inductors. We are ISO9001:2008 certification factory, which located in Anhui province(near to Shanghai). We can provide free power flyback transformers samples in 5days, if our sample approved your testing, then we can begin from small order to big order. If you provide your information of product specification or drawing, we will give our best quotation to you fastly.
Quick Details
|
Part No: 15~35W EF25 Flyback Transformer |
|
Brand name: MCT |
|
The operating frequency: 20kHz-500KHz |
|
Custom made: Available |
|
Working temperature: -40 ℃ to + 125 ℃ |
|
Logo: Can be customized |
|
Storage temperature: -25 ℃ to + 85 ℃ |
|
Packing: Carton,can custom |
|
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
|
Power range: 5W~35W |
|
OEM: Available |
|
Shape type: horizontal, vertical |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: 15~35W EF25 High Frequency Flyback Transformer For Led and Power Supply
Applications: Single-phase Transformer, DC-DC converter, Driving transformer, Power transformer, Digital camera, hand-held switching mode power charger.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Specification
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
