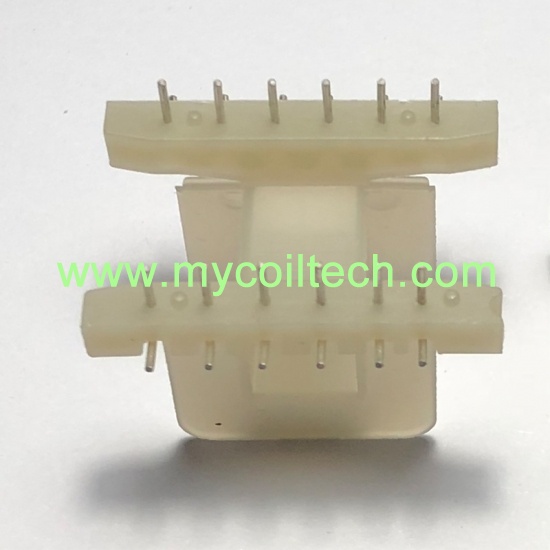

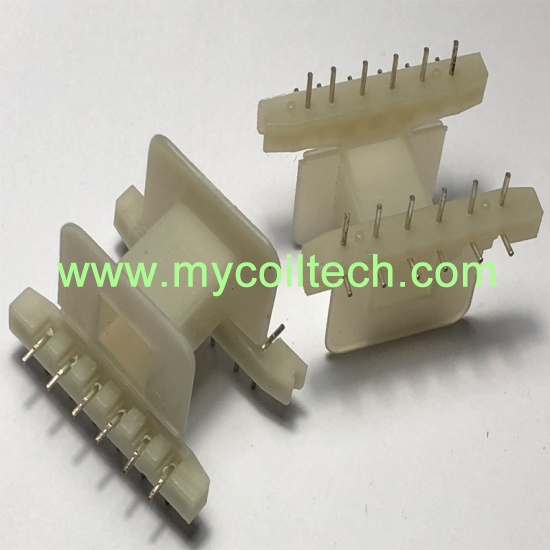

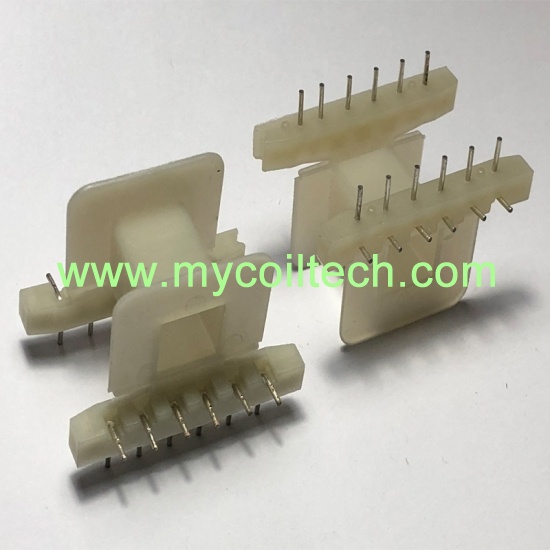

EE35 ferrite coil for transformer. 6+6 pin horizontal bobbin EE35. Pin pitch=5.0mm. Parallel distance=21.4mm. L pin transformer bobbin. Bobbin Size=37.5mmX27.2mmX25.5mm. EE35 PET material bobbin.
brand:
MCTitem no.:
MCT-EE3502shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.084$We are manufacturer of high frequency transformers, we produce various coil bobbins, such as EFD/EE/RM/PQ/UU/ETD bobbins, samples can be sent to test.
Quick Details
|
Part Number: MCT-EE3502 |
Brand Name: MCT |
|
Material: PET |
Color: White |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Horizontal EE35 High Frequency Bobbin 6+6 Pin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke inductors, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Welcome for inquiry, we will give you fast reply.
